Hard Sprial High Speed Doors

Specification

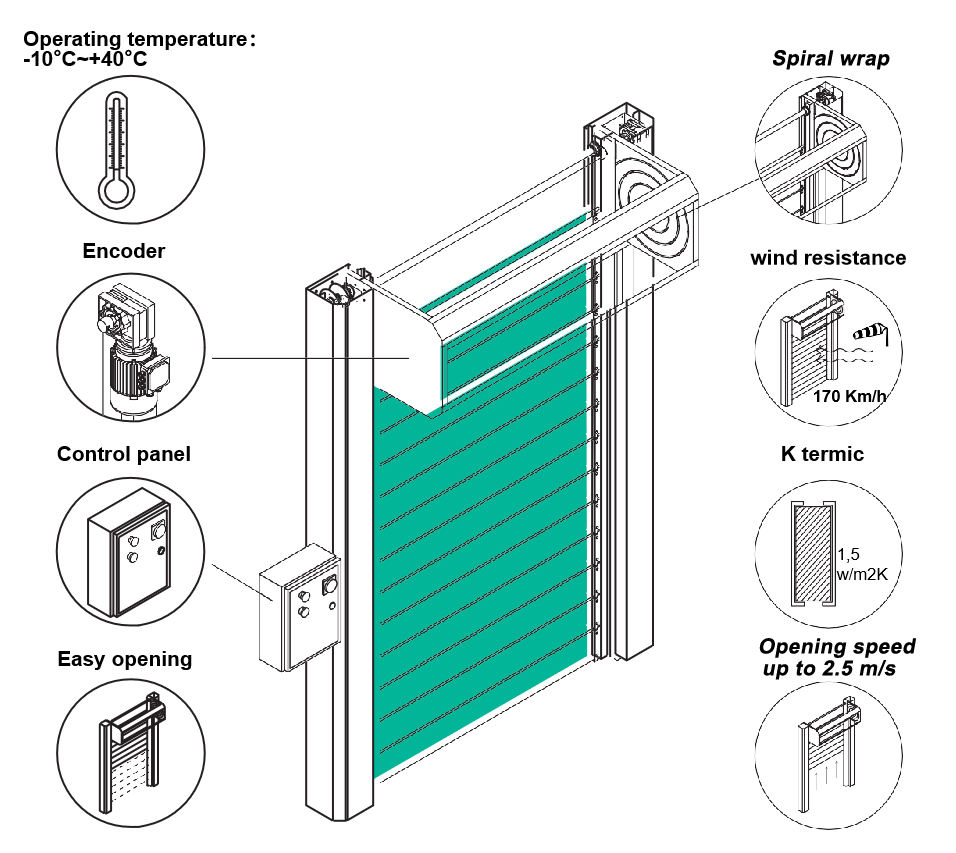

Features

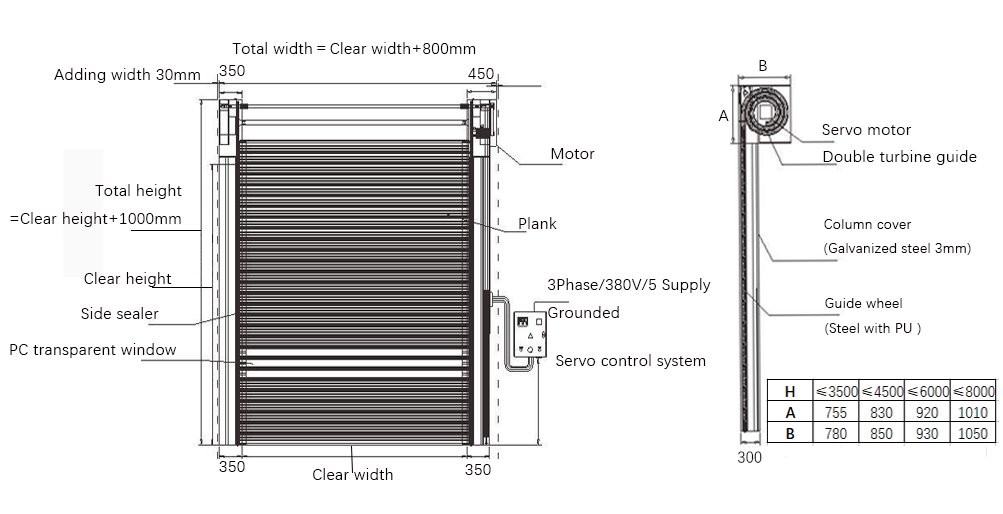

Door Structure blueprint

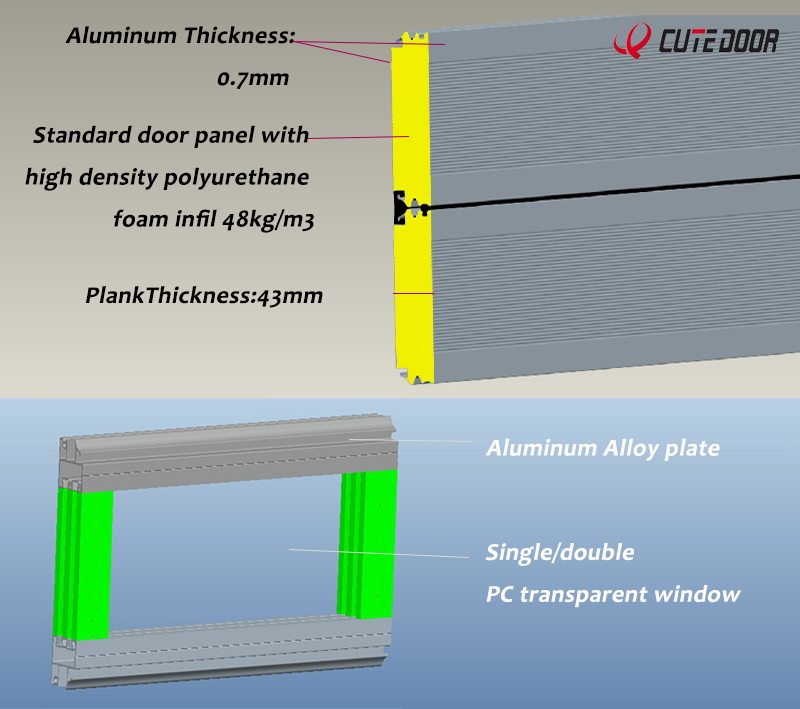

Panel

PARAMETERS	TECHNICAL AND OPERATING SPECIFICATIONS
APPLICATION	Inside and outside
MAX CLEAR DIMENSIONS	8000 x 7500 mm
	0.5~ 2.5 m/s (Setting depending on the size)
WATER PERMEABILITY	≤700pa, Class 6
WIND PERMEABILITY	5kpa, Class6
OPERATING TEMPERATURE	-10°C +40°C
GUIDE STRUCTURE	Galvanized steel+Aluminium alloy
CURTAIN	OUTSIDE/INSIDE: pre-painted alluminium with PU forming , the thickness 43/60/80mm
CONTROL PANEL	Inverter 380 V with microprocessor
POWER SUPPLy	380V，50/60HZ
Motor Sever motro (SEW motor option)
EMERGENCy OPENING	STANDARD

	Manual crank release (counterweight)
SAFETY EDGE	STANDARD
SAFETY EDGE	Integrate in photocells barriers activated up to a height of 3000mm

Hard Sprial high speed door-a new metal industrial door integrating heat preservation, energy saving, sealing, high efficiency, wind resistance, and environmental protection.
Adopts a special control system, the core is a DSP processing chip, and the system accurately controls the opening height of the door body by receiving the SEW motor encoder signal.
It has the characteristics of good heat insulation, light weight, high strength, impact resistance, etc. The door type is suitable for the fast passage of indoor and outdoor logistics and production. Adopting this door type can save enterprises a lot of energy loss due to air circulation, and save about 80% of energy compared.
