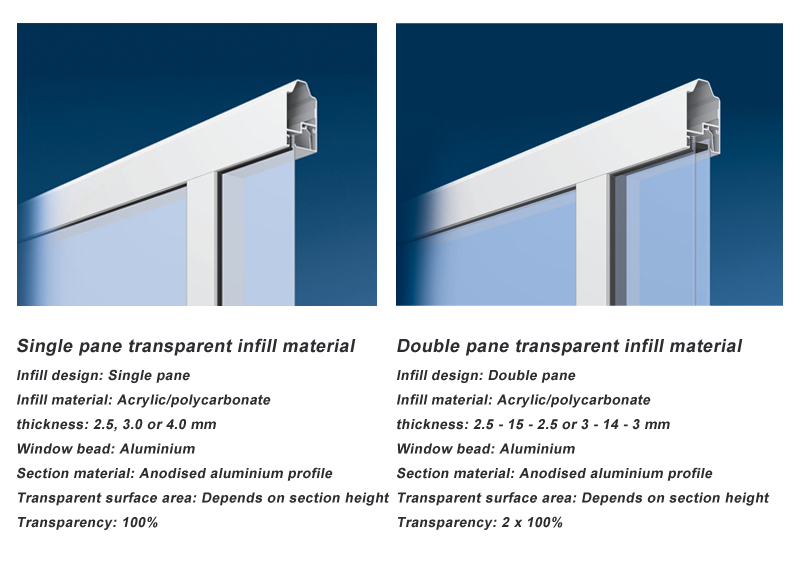

Panel

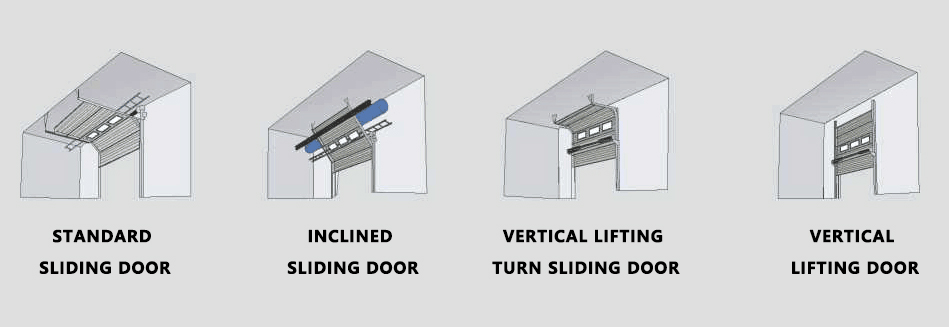

Door Tracking Selection

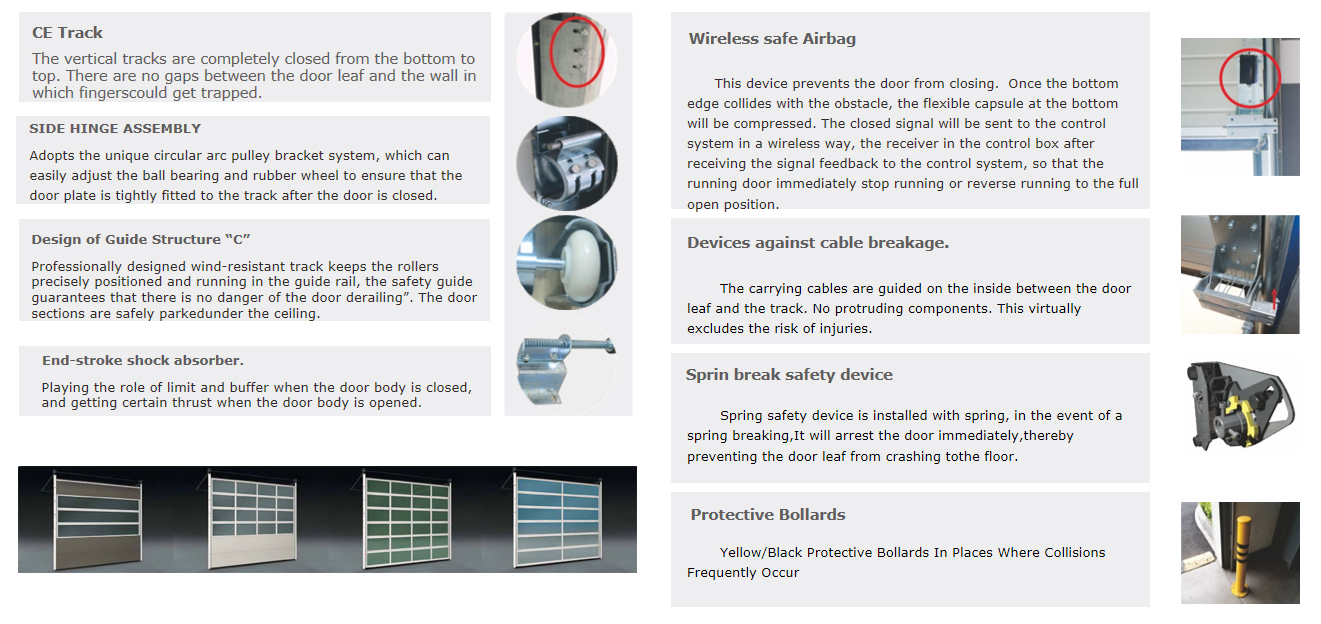

Safety Features

	QT-10
	Commercial Aluminum Full View Doors
Max.dimensions	W5000mm x H5000mm
Opening speed Closing speed	0.2m/s
Drum	Shaft- Ø 26mm
Panel thickness	Single or Double transparent PC 3~5mm+aluminium framework 2.0mm
Plating thickness	PC 3~5mm
Wind load	Class 3
Vertical Track and Angle	2.0mm thk folded steel, galvanised before cutting and folding.
Driver	Direct or via shaft or sprocket and chain driven by side-mounted motor,IP54
Standard detectors	Safety airbag edge protection.(Option:Infrared barrier: 300 mm from the floor.)
Sealer	All round rubber sealer
Actuation options	Push Buttons,Remote
Power supply Frequency	220/380v,50-60 Hz

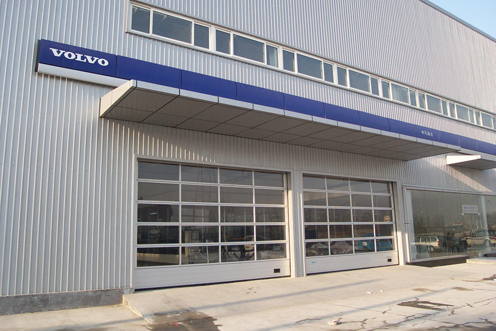

Aluminum Transparents sectional doors offer an attractive solution for commercial and industrial applications where visual access, light infiltration, and aesthetics are key design considerations. Doors offer a variety of stile widths, glazing materials, track styles, and finish options. Ideal for service stations, fire stations, professional facilities, and retail environments, our sectional aluminum doors are practical, durable, and handsomely styled and engineered for long life, low maintenance, and enduring beauty.
