Microperforated Roller Shutter Doors

PVC High Speed Doors

Specification
Features

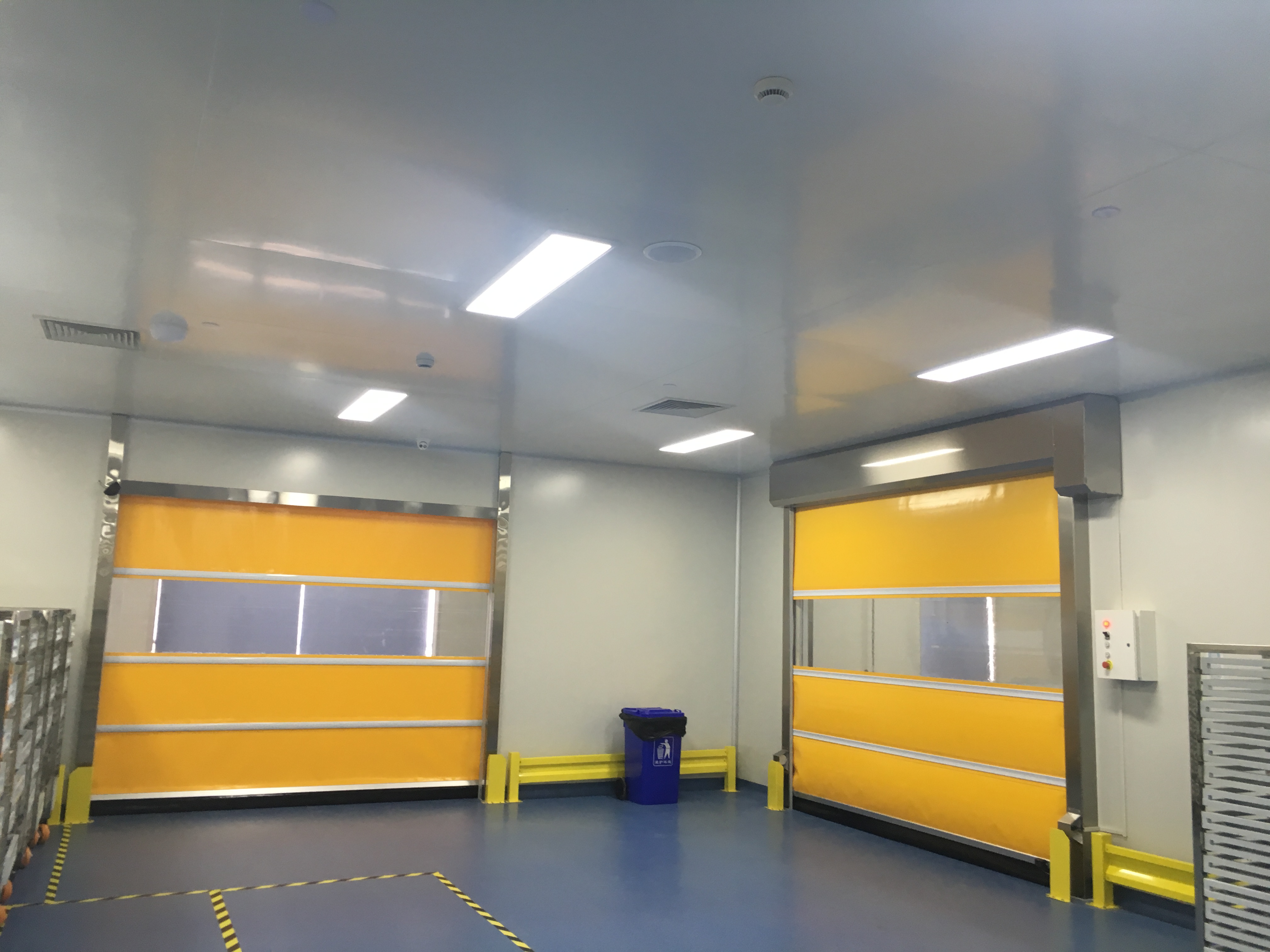

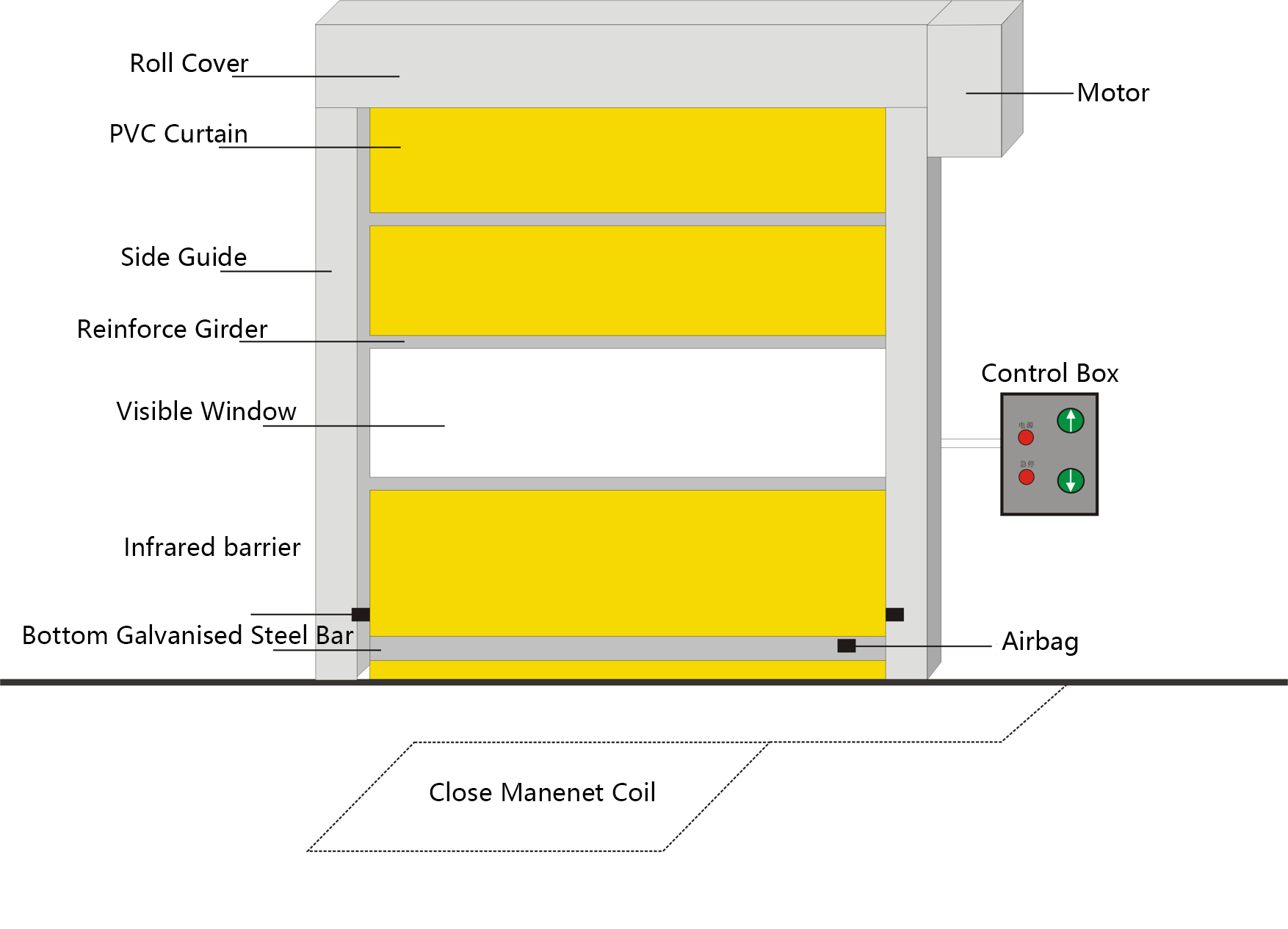

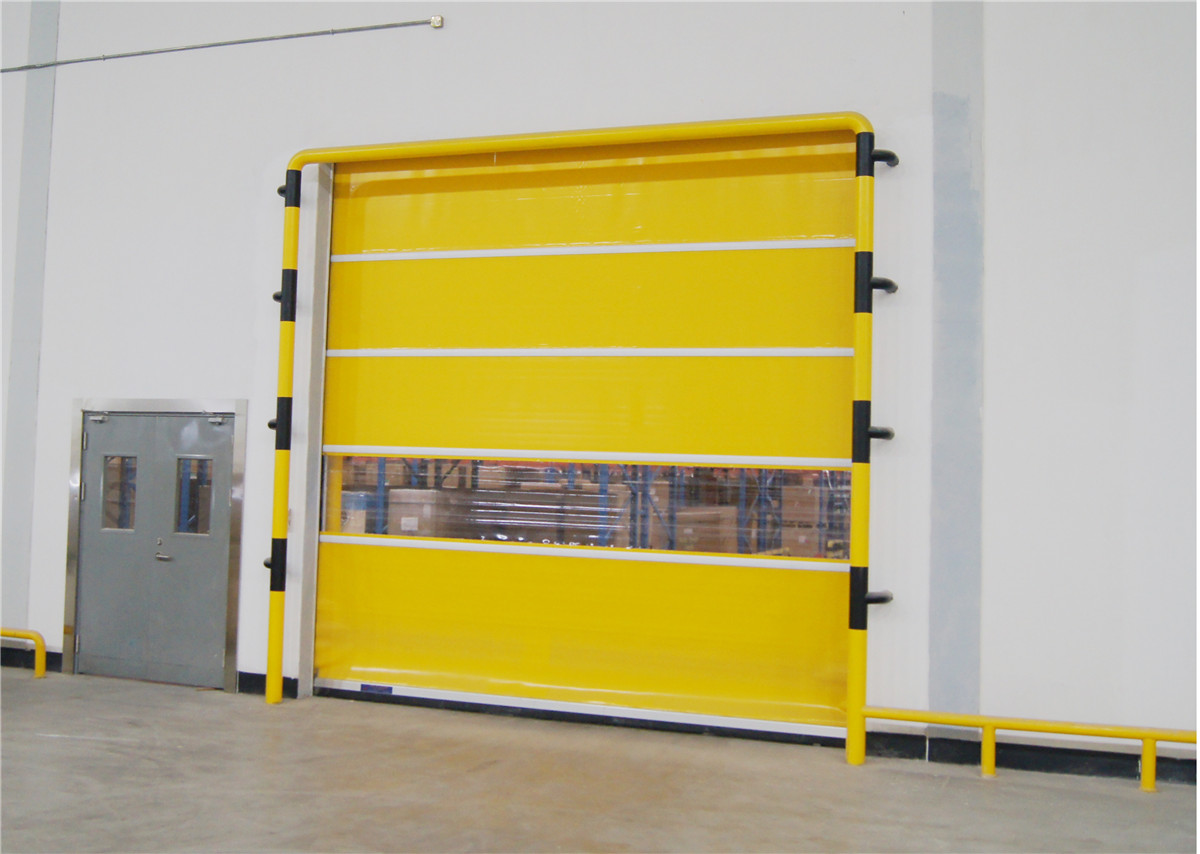

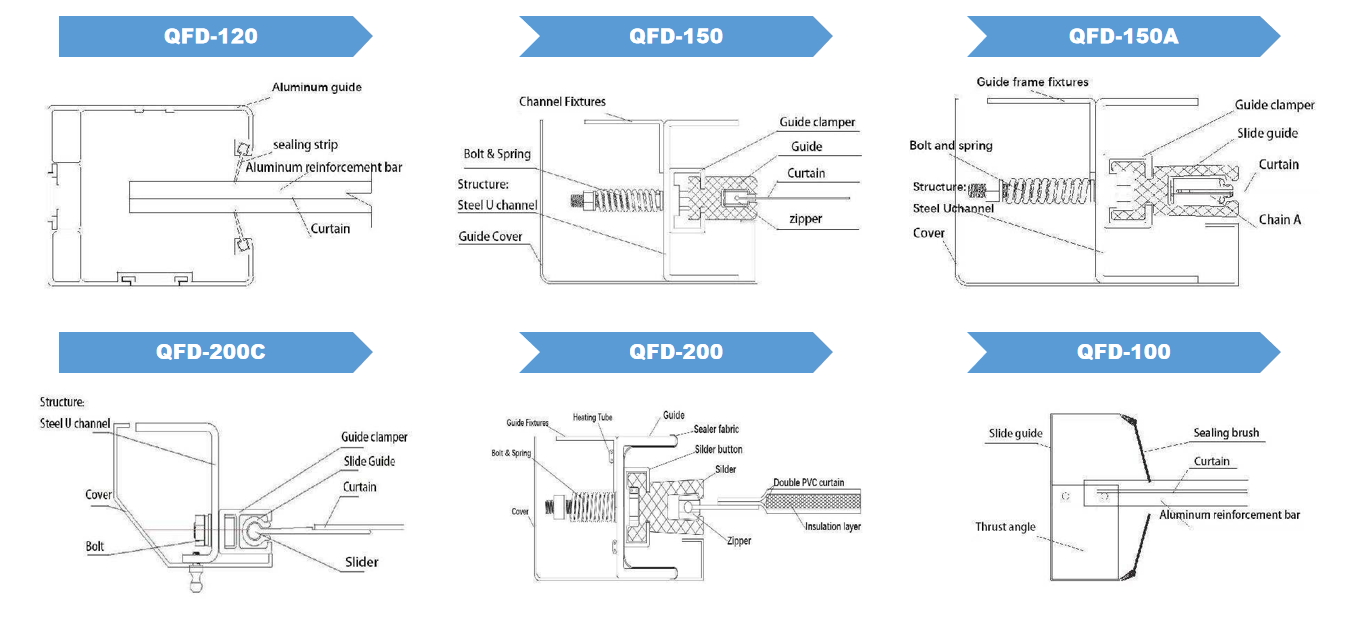

Guide Structure blueprint
Panel
Safety Features

	QFD-120	QFD-150	QFD-150A	QFD-200C	QFD-200	QFD-100
	Basic-design High Speed Door	Self Repairing High Speed Door	Self Repairing High Speed Door	Cleanroom High Speed Door	High Speed Freezer and Cooler Door	Folding High Speed Door
Max.dimensions	W5000mm x H5000mm	W4200mm x H4500mm	W4200mm x H4500mm	W4000mm x H4000mm	W5000mm x H5500mm	W6000mm x H6000mm
Opening speed Closing speed	0.8~1.2m/s（settable)	0.8~1.5m/s（settable)	0.8~1.5m/s（settable)	0.6~2.0m/s（settable)	0.8~1.2m/s（settable)	1m/s settable 0.8m/s settable
Drive Technology	Single Roll	Single Roll	Single Roll	Single Roll	Push-Pull drive	Side guide and Lateral driving belt
Drum	Steel - Ø 114 x 2.0 mm	Steel - Ø 114 x 2.0 mm	Steel - Ø 114 x 2.0 mm	Steel - Ø 114 x 2.0 mm	Steel - 1drum 140 x 3.0 mm+ 1drumØ 114 x 2.0 mm	Steel-30mm solid steel
Curtain	Imported material high density PVC0.8~1.5mm +Galvanised Steel horizontal stripe	Imported material high density PVC0.8~1.5mm+PVC vertical stripe	Imported material high density PVC0.8~1.5mm+PVC vertical stripe	Imported material high density PVC0.8~1.5mm	2 layers of PVC coated polyester with 1 layer of polyester weave and conductive plus radiant insulation	Imported material high density PVC1.5mm +Aluminum alloy horizontal Rib+strap
Self-repairing	Non	Non	Self Repairing	Self Repairing	Self Repairing	Non
Wind load	Class 2	Class 1	Class 1	Class 1	Class 1	Class 2
Side guides and cover	Folded steel, galvanised before cutting and folding. Full covers standard. Option: stainless steel or aluminum alloy	Folded steel, galvanised before cutting and folding. Full covers standard. Built-in zipper Option: stainless steel	Folded steel, galvanised before cutting and folding. Full covers standard. Built-in zipper Option: stainless steel	Folded steel, galvanised before cutting and folding. Full covers standard. Option: stainless steel	Folded steel, galvanised before cutting and folding. Full covers standard.Built-in Heating tube. Option: stainless steel	Folded steel, galvanised before cutting and folding. Full covers standard. Option: stainless steel
Motor	Servo motor 0.75~1.5KW, IP54/IP65	Servo motor 0.75~1.5KW, IP54/IP65	Servo motor 0.75~1.5KW, IP54/IP65	Servo motor 0.75~1.5KW, IP54/IP65	Servo motor 0.75~1.5KW, IP54/IP65	Servo motor 1.5~2.2KW, IP54/IP65
Control Box	Circuit breaker, general divider, adjustable timer, push button for opening and reset and emergency stop.Frequency inverter.	Circuit breaker, general divider, adjustable timer, push button for opening and reset and emergency stop.Frequency inverter.	Circuit breaker, general divider, adjustable timer, push button for opening and reset and emergency stop.Frequency inverter.	Circuit breaker, general divider, adjustable timer, push button for opening and reset and emergency stop.Frequency inverter.	Circuit breaker, general divider, adjustable timer, push button for opening and reset and emergency stop.Frequency inverter.	Circuit breaker, general divider, adjustable timer, push button for opening and reset and emergency stop. Frequency inverter.
Standard detectors	Infrared barrier: 300 mm from the floor.Safety airbag edge protection	Infrared barrier: 300 mm from the floor.Wireless detector (WDD),Safety airbag edge protection	Infrared barrier: 300 mm from the floor.Wireless detector (WDD),Safety airbag edge protection	Infrared barrier: 300 mm from the floor.Wireless detector (WDD),Safety airbag edge protection	Infrared barrier: 300 mm from the floor.Wireless detector (WDD),Safety airbag edge protection	Infrared barrier: 300 mm from the floor.Wireless detector (WDD),Safety airbag edge protection
Actuation options	Push Buttons,Remote Close magenet coil,Rfid,Radar (options)	Push Buttons,Remote Close magenet coil,Rfid,Radar(options)	Push Buttons,Remote Close magenet coil,Rfid,Radar (options)	Push Buttons,Remote Close magenet coil,Rfid,Radar (options)	Push Buttons,Remote Pull rope, Ladio(options)	Push Buttons,Remote Close magenet coil,Rfid,Radar(options)
Power supply Frequency	1-phase-220v, 3phase-380v,50-60 Hz	1-phase-220v, 3phase-380v,50-60 Hz	1-phase-220v, 3phase-380v,50-60 Hz	1-phase-220v, 3phase-380v,50-60 Hz	1-phase-220v, 3phase-380v,50-60 Hz	1-phase-220v, 3phase-380v,50-60 Hz
Advised operating temperature	+ 5 °C up to + 40 °C	+ 5 °C up to + 40 °C	+ 5 °C up to + 40 °C	+ 5 °C up to + 40 °C	- 20 °C up to 45 °C	- 5 °C up to + 45 °C

Available colours comparable with: (Actual colours may deviate. Colour samples available upon request)
Yellow	RAL1003	Green	RAL6005
Orange	RAL2004	Grey	RAL7035
Red	RAL3000	White	RAL9010
Blue	RAL5002	Black	RAL9005

Cutedoor high speed doo is usually used wherever goods traffic occurs and where the doors have to fulfill special requirements. In the food and beverage industry, or Medical industry for example, special climatic conditions have to prevail.
They are technical enhancements of the generally known sectional doors, PVC fabric doors or roller shutters.
Provides greater insulation by reducing or eliminating drafts ,excess heat loss .The high speed automatic easy opening in busy high traffic situations, requires minimal maintenance, controlled workflow saves time and money


Main components:
Door curtain, track, wind rod, perspective window, door head, motor, control box, photoelectric, control system, etc.;
Open mode: Button, radar, geomagnetic, remote control, pull rope, access control, chain;Safety protection device:
1）Obstacle detection photoelectric switch protection device
2）Control box emergency stop emergency button switch protection
3）Door stroke automatic control limit protection device
4）Rebound wireless airbag protection device
