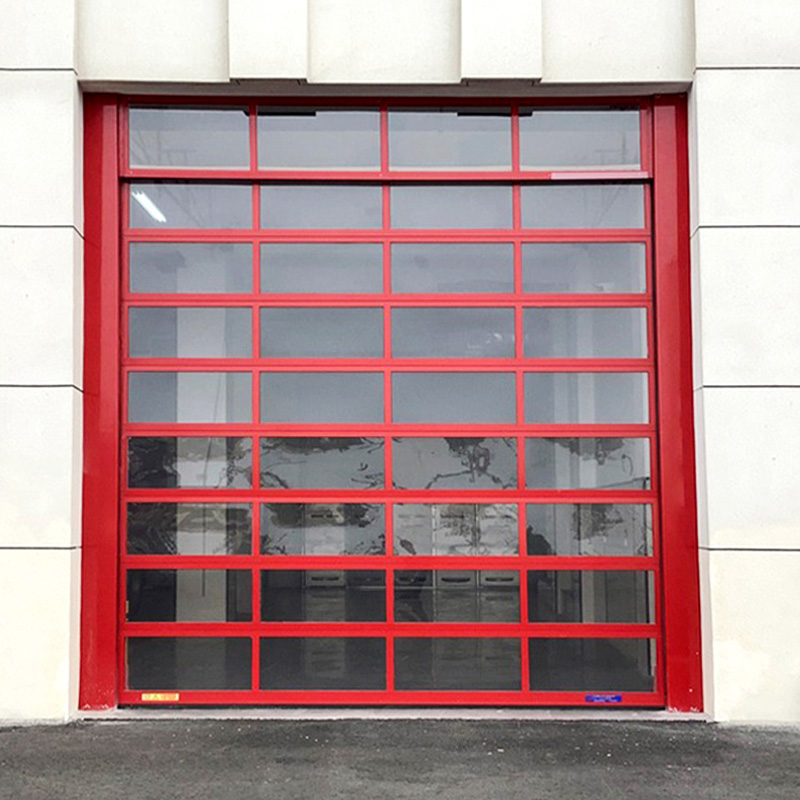

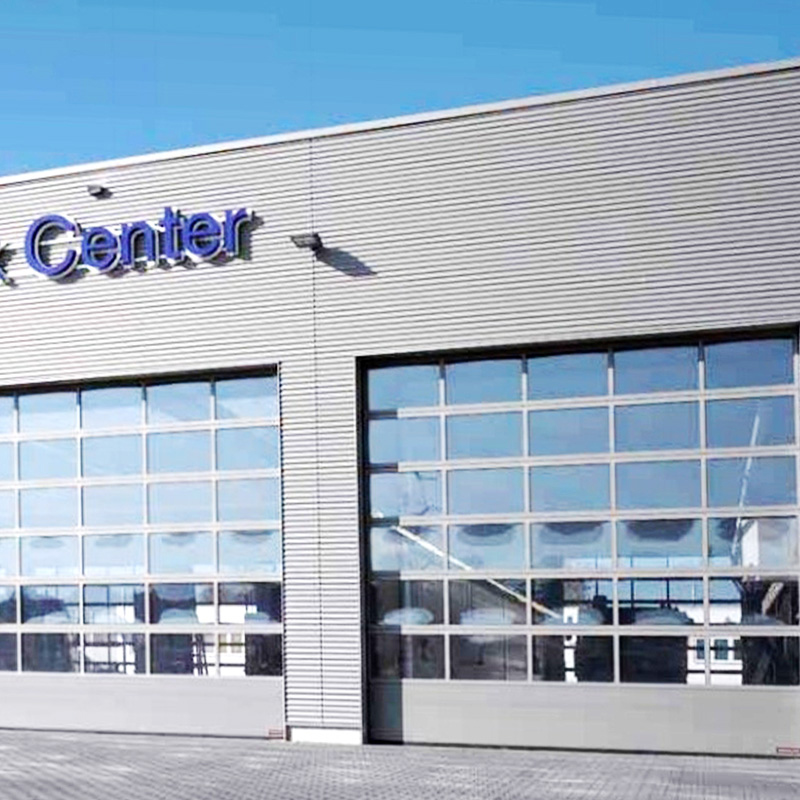

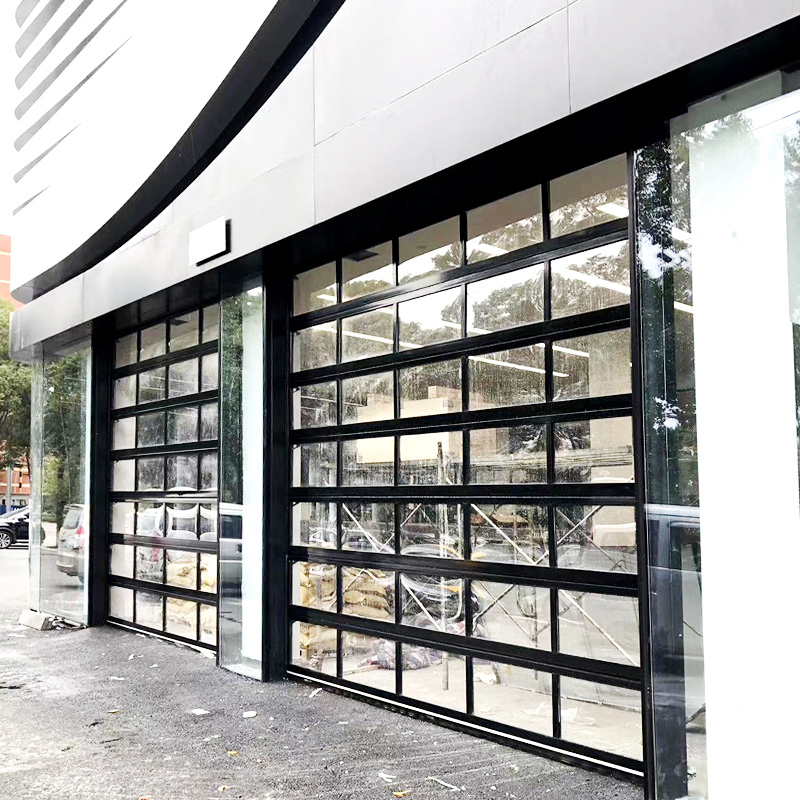

Full view transparent sectional door is a modern, fashionable and special industrial doors, widely used in automobile 4S shops, equipment exhibition hall, shopping malls, irestation and other occasions, combines the characteristics of perspective and ascending, usually composed of aluminum profile and PC board, has high strength and good daylighting performance.
|
Item |
QT-10 |
|
Description |
Transparent Overhead Sectional Doors |
|
Door Panel |
Full Transparent-Box pattern Aluminiumframe with both side Acrylic / syntheticgla-zing Semi Transparent-partly transparent&partly with PUF insulated panels |
|
Width Max. |
6000mm |
|
Height Max. |
8000mm |
|
Opening/closing speed |
Speed up to 2m/s |
|
Wind Resistance up to |
Class 3 |
|
Driver |
"Cutedoor" motor, Direct or via shaft or sprocket and chain driven by side-mountedmotor. IP54 |
|
Bottom Profile |
Threshold bottom EPDM seal with sensors as optional |
|
Hinges |
Galvanized screwed hinges at sides and center |
|
Shaft |
Torsion spring shaft with lateral load-bearing cables |
