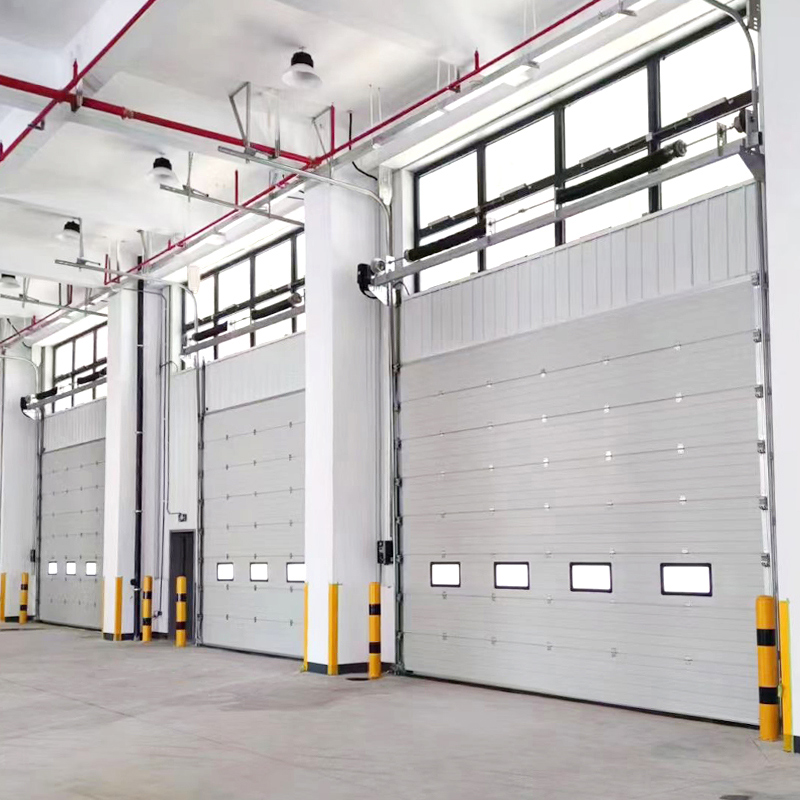

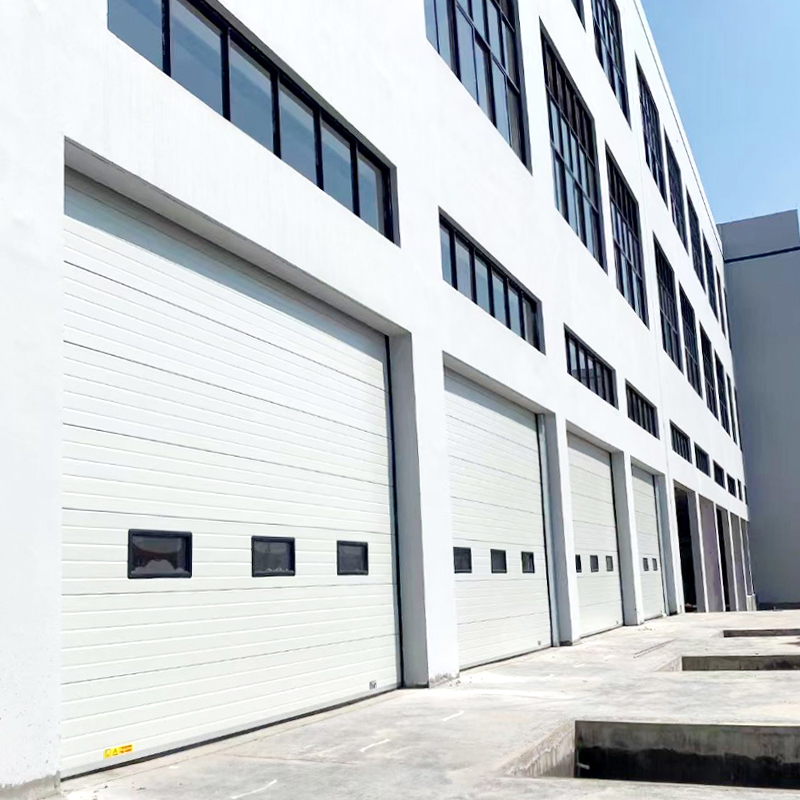

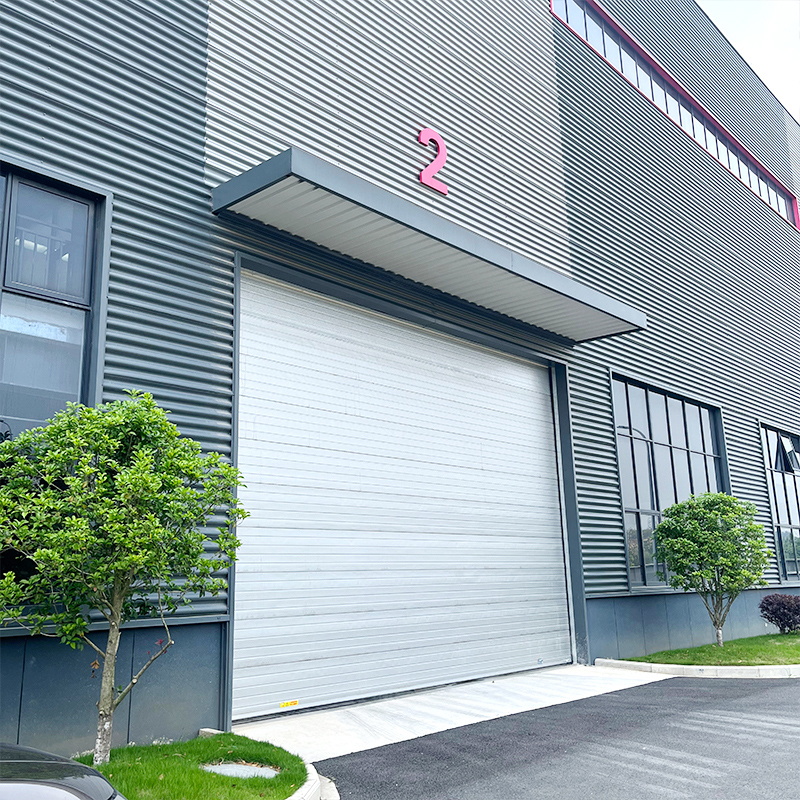

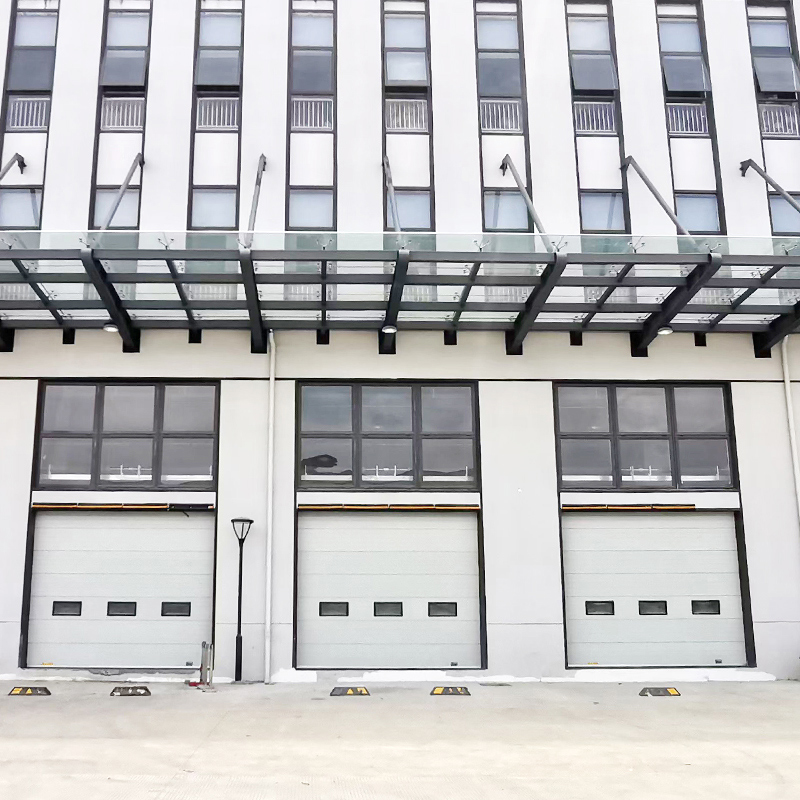

QT-1 Insulated Sectional Door

Adopt a fully automated continuous production line; The inner and outer door panels are made of steel plates or aluminum plates. The interior of the door panels is filled with environmentally friendly polyurethane foam material with a density of 48kg/m³. The height of each door panel is 500mm. The door panel surface can be selected according to the design requirements. To enhance the wind resistance of the entire door, reinforcing steel plates and strips are strategically placed at the door panel interfaces for reinforcement. At the connection points of each door panel, sealed rubber is installed to block the transfer of cold and heat and minimizing thermal damage. The wind pressure resistance strength of the door panel is≥750N/m³。

Technical Specifications

Item

QT-1

Material

42mm/50mm/65mm insulatio

0.4/0.5mm zinc-galvanized steel plate

42mm/50mm/65mm insulation

0.6mm aluminum plate

Max.dimensions

W6000mm*H6000mm

Opening/Closing speed

0.2m/s

Vertical Track and Angle

2.0mm thickness folded steel, galvanized before cutting and folding.

Driver

"Cutedoor" motor,

Direct or via shaft or sprocket and chain driven by side-mountedmotor.

IP54

Windload

Class 3

Bottom Profile

Threshold bottom EPDM seal with sensors as optional

Hinges

Galvanized screwed hinges at sides and center

Shaft

Torsion spring shaft with lateral load-bearing cables
