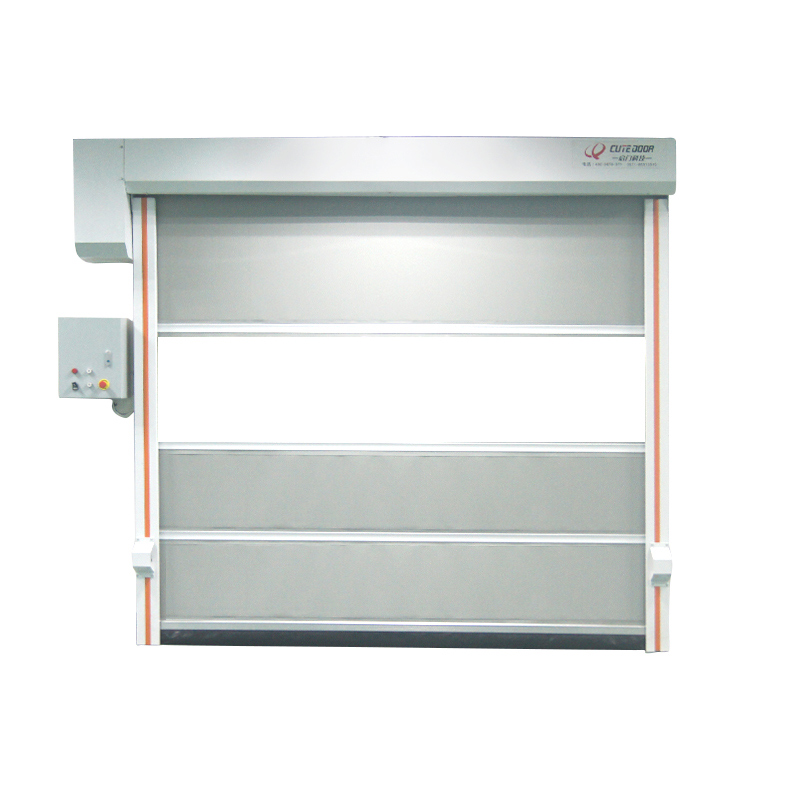

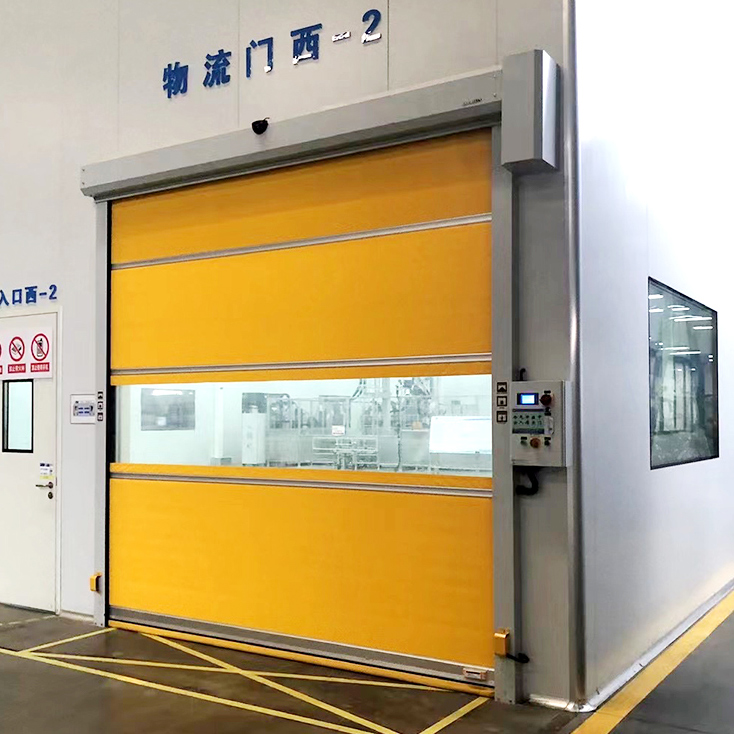

QF-1 PVC High Speed Door

PVC high speed doors are widely utilized in various industrial manufacturing plants, workshop partitions, as well as in the food industry, pharmaceutical industry, automotive industry, etc. hese doors are characterizedby their energy-saving capabilities, high-speed opening and closing, and improved work efficiency, creating a better working environment.

Special profiles using material of aluminum alloy, with surface plastic spraying treatment; The bottom is made of curtain fabric to create a flexible ring-shaped sealing pocket. Even on uneven ground, the flexible sealing pocket can ensure a tight seal between the door leaf and the ground.

Technical Specifications

Item

QF-1

Description

High speed door

Max dimensions

W4000mm*H4200mm

Standard Door curtain

PVC Curtain 0.8mm+Aluminum alloy horizontal Rib

Opening/closing Speed

0.8-1.2m/Sec. (Adjustable)

Standard Power supply

110V,220V,380V,400V/50-60HZ

Drive motor

Servo motor 0.75-1.5Kw./IP 54

View Window

Optional

Top and track hood

Standard: Galvanized Steel

Optional: 304 Stainless Steel

Side Track

2.0mm galvanized steel

Control Box

LCD display

Reinforce Girder

Brush

Wind Resistance

Class2

Advised operating

-5℃ up to +45℃
